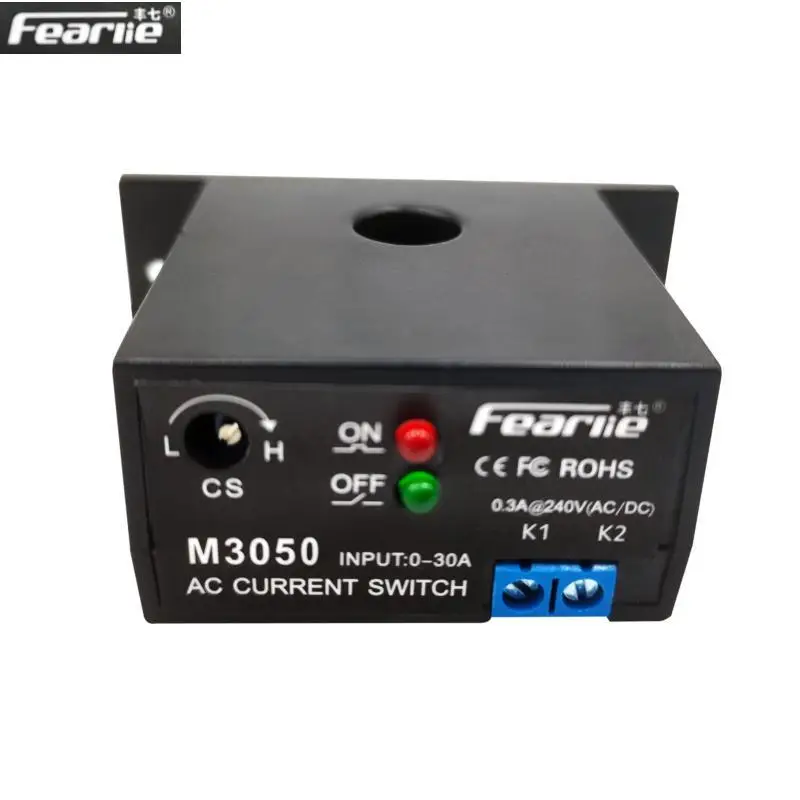

Jadeshay AC Current Meter 240V 0.2-30A Adjustable AC Current Detection Switch AC Current Detection Switch Alarm Module Transformer Control (Normally Closed)

Specification:Model: M3050Power supply: Not requiredRated load: ≤ 0.5A@240V AC/DCInput current: 0.2-30A ACSwitch on minimum: 0.5±0.2AMaximum overload: 100%Leakage current: ≤0.1AAccuracy: 1%Hysteresis: ≤1%Response time: ≤200msRepeatability: 100%Working temperature: -20~60℃Waterproof: IP30Dimensions: 65 x 25 x 47mm / 2.56 x 0.98 x 1.85inHole diameter: 10mm / 0.4inPackage weight: Approx. 56g/2.0ozPackage list:1 x Current Sensing Switch Accurate and Reliable: AC current sensing switch provides induction range and general solid-state output with current range of 0.2-30A. Its measurement accuracy is better than 1%, which is suitable for the measurement of any waveform and can faithfully reflect even the transient peak current and voltage signals High Safety: Self powered sensing switch for automated industrial equipment uses the electromagnetic induction principle of current and adopts advanced output detection, monitoring, protection and alarm products developed by non power supply technology. At the same time, it has wide frequency band, strong anti-interference ability and strong overload ability. Wide Scope of Application: Adjustable isolation AC current switch is applicable to substation, variable frequency speed regulation device, inverter device, electroplating, electric locomotive, street lamp monitoring, coal mine and other automation industries requiring current monitoring. NC / no current switch can control various automatic industrial equipment, flashlight, buzzer, relay, microcontroller or other electrical load devices
